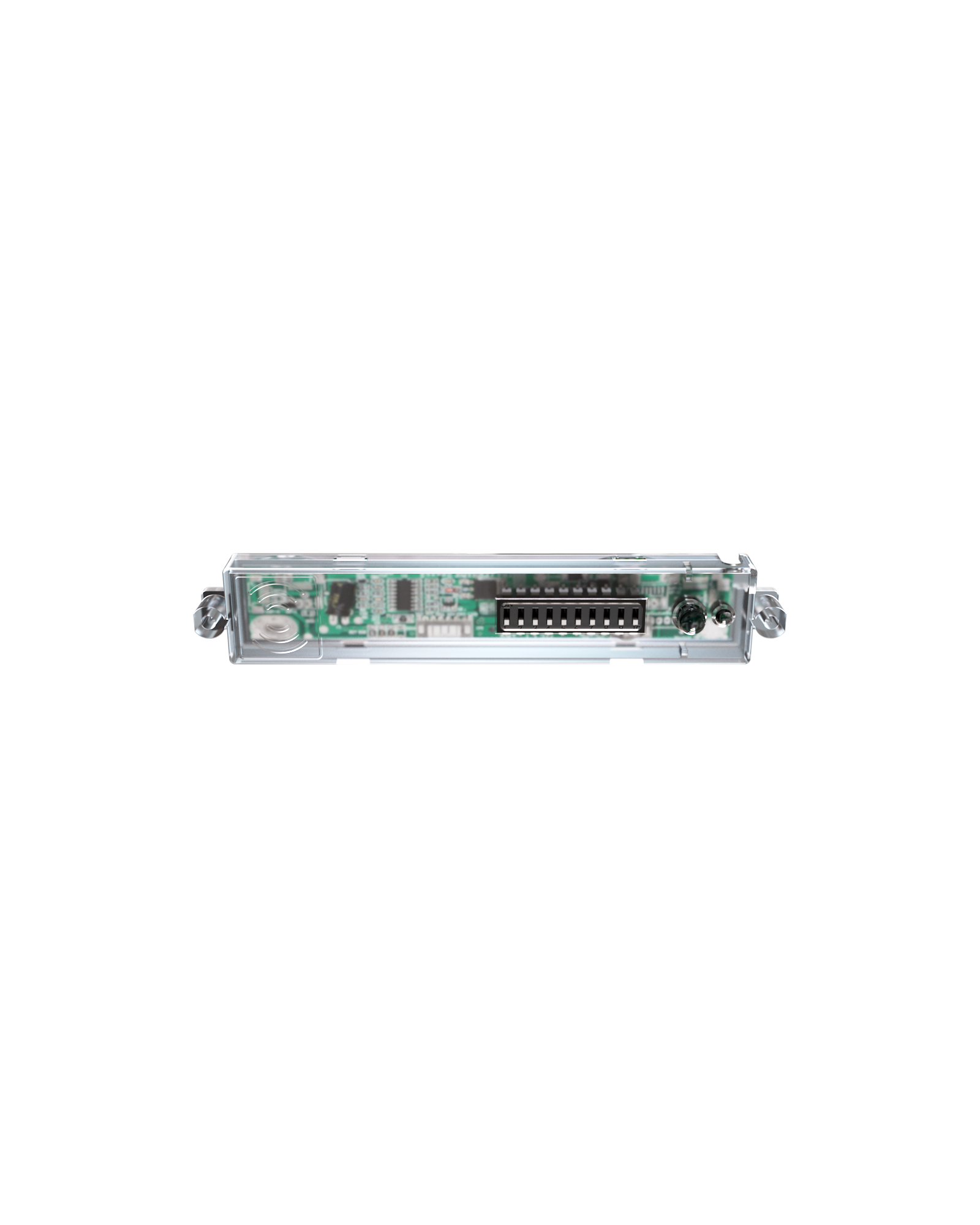

Microwave Fixture-Mounted Controller

C-TFW-42-DF00

The S-OW is a moving object sensor that can detect with a 360° range and works at a frequency of 5.8GHz with a high frequency output < 0.2mW.

Controllers and Sensors Indicator LED
Indicator LED Blinking = Device is ON but not programmed
No Indicator LED = No power to device or device failed
Solid Color Indicator LED = Device is ON and programmed


Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Login or contact sales to view pricing.

Technical Description

  • Sensor Type: Microwave
  • HF System: 5.8GHz ± 75MHz
  • Input Voltage: 12-24VDC
  • Current Consumption: 50mA
  • Output 0-10V: Max. 25mA Sinking current
  • Max Mounting Height: 13' (4m)
  • Max Detection Area*: 17' (5.2m) radius
  • Operating Temperature: 40°F to 158°F (-20°C to 70°C)
  • Dimensions: 4.3" X 0.73" X 0.33" (105mm X 18.5mm X 8.5mm)
  • Warranty: 3 Years
