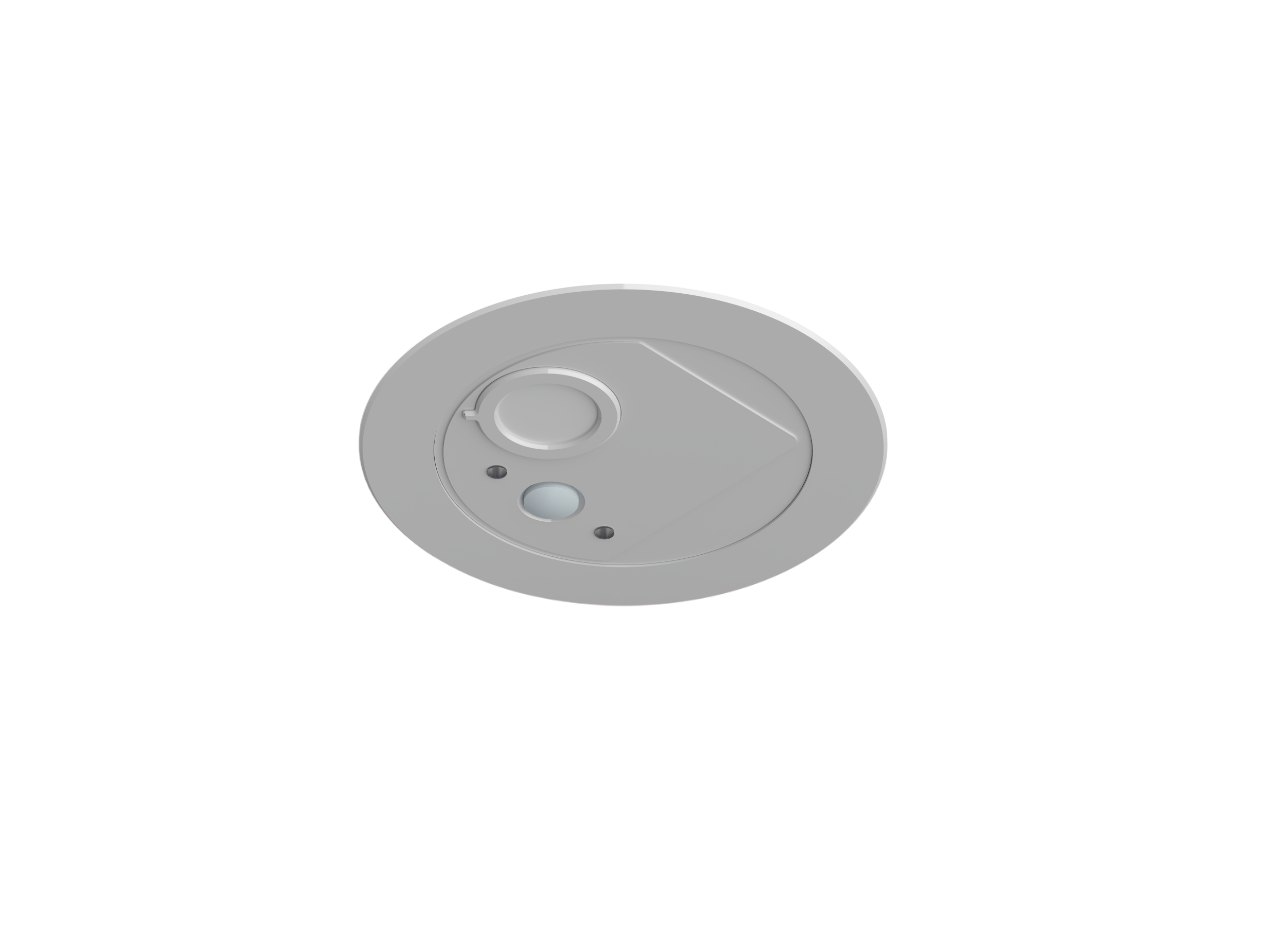

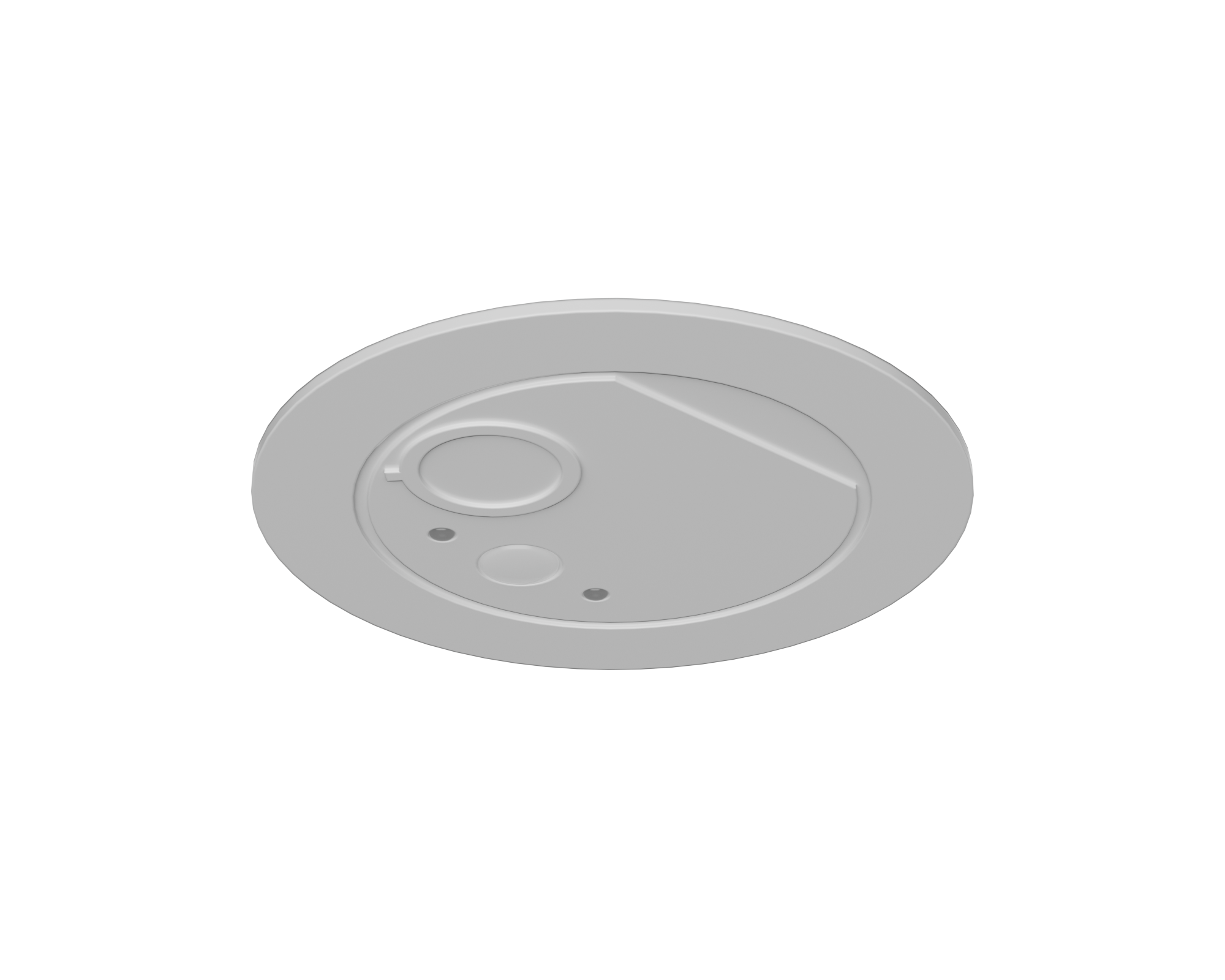

People Counting Occupancy Sensor

S-PC-C02-DRWH

The flush-mounted S-PC-C represents the next evolution in advanced sensing technology. Leveraging cutting-edge thermal sensing and embedded Artificial Intelligence (AI), it delivers the world’s first 100% privacy-protective human counting and location detection for real-time occupancy data capture. Additionally, it features a programmable radio transceiver designed for low-power, low-data bandwidth IoT mesh networks.

Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Login or contact sales to view pricing.

Technical Description

  • Input Voltage: 12 VDC
  • Max. mains current @ 240V (Wi-Fi streaming): >10 mA
  • Operating Conditions: The temperature difference between the detection target and the background must be at least 0.5 °C.
  • Ambient temperature: 0...+40 °C
  • Storage temperature: -10...+50 °C
  • Resolution: 28 x 15 IR pixels
  • Spectral detection range: 8…12 μm (LWIR)
  • Field of view: X: 140˚, Y: 100˚
  • Framerate: 4 Hz
  • Operating frequencies: 2.4...2.480 GHz
  • Max. output power: +4 dBm
  • Dimensions: 79mm x 85mm x 85mm
  • Warranty: 5 Years
