Technical Description

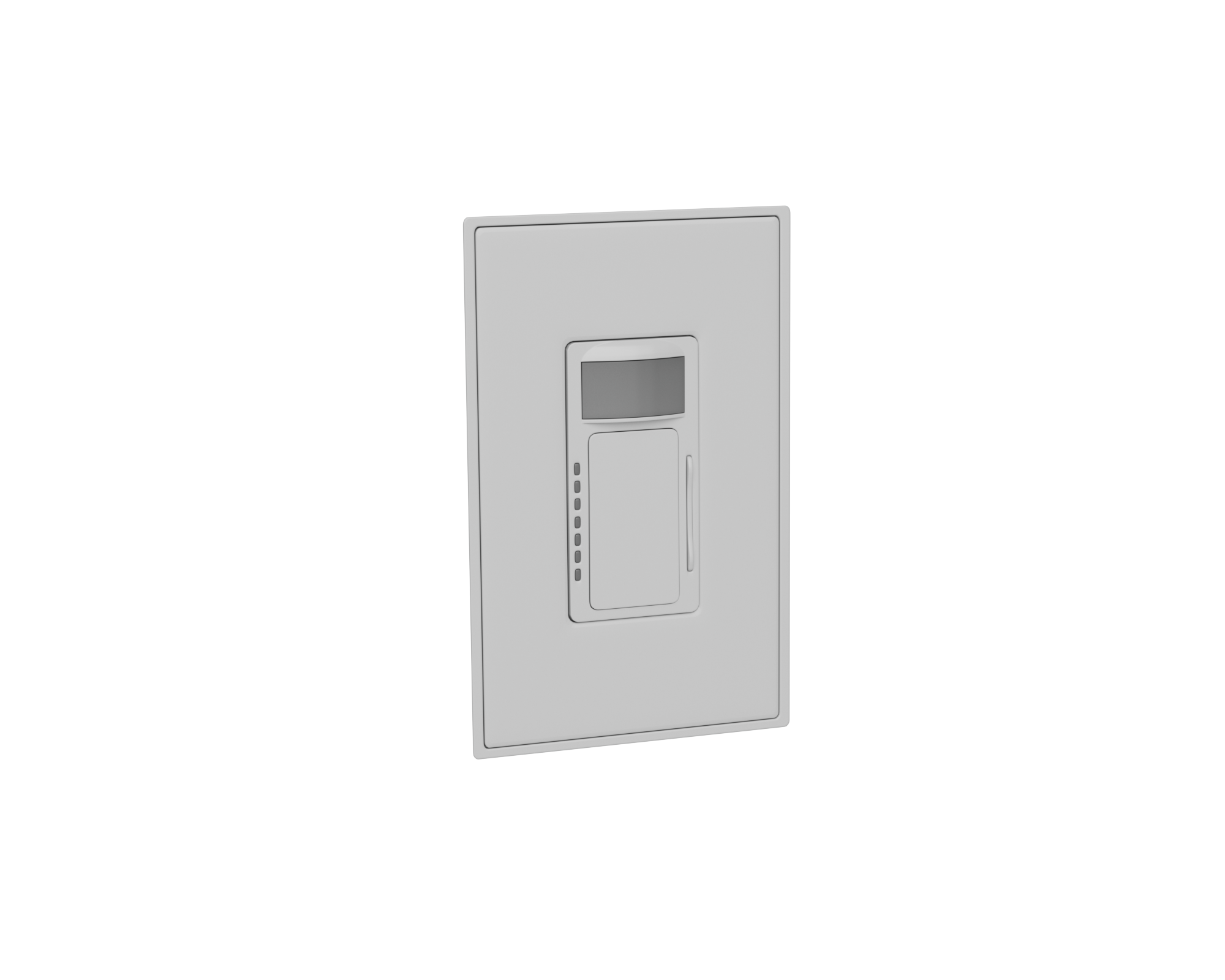

The K-C3-UDS-00WH is a Passive Infrared Sensor best suited for applications with clear line of sight and good air circulation. The sensor will automatically turn on the lights to set dimming level when motion is detected and turn off lights automatically after the area is vacated. Often used in conference rooms, offices, class rooms and private restrooms.

• Sensor Type: PIR Occupancy Sensor
• Input Voltage: 110-277 VAC 50/60Hz
• Maximum Sensor Range: 48ft x 36ft @ 3.5ft mounting height (14.6m x 11m @ 1.01m mounting height)
• Bluetooth® Low Energy Range: 30ft (15.2m) (Typical)
• Time Delays: Varies
• Photocell Sensitivity: Low, Medium, High
• Operating Temperature: 32°F to 131°F (0°C to 55°C)
• Storage Temperature: 14°F to 140°F (-10°C to 60°C)
• Relative Humidity: 95% non-condensing
• Mounting: Standard Plastic J-Box Recommended
• Dimensions: 4.5” x 2.75” x 0.75” (114.3 x 69.85 x 19.05 mm)
• Color: White (Three Faceplate color options available)
• Warranty: 2 Years

Connect the K-C3-UDS-00WH Sensor Switch to a Bluetooth® Mesh Network to control a group of luminaries in a specific zone. The BubblyNet Commissioning App enables adjustment of the sensor parameters such as time delay and dim level. The K-C3-UDS-00WH Sensor Switch can replace a standard single pole wall switch and installed as a common switch screwed to a standard J-Box. Non-metallic J-Box highly recommended to maximize wireless coverage.

For best results, sensors need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
