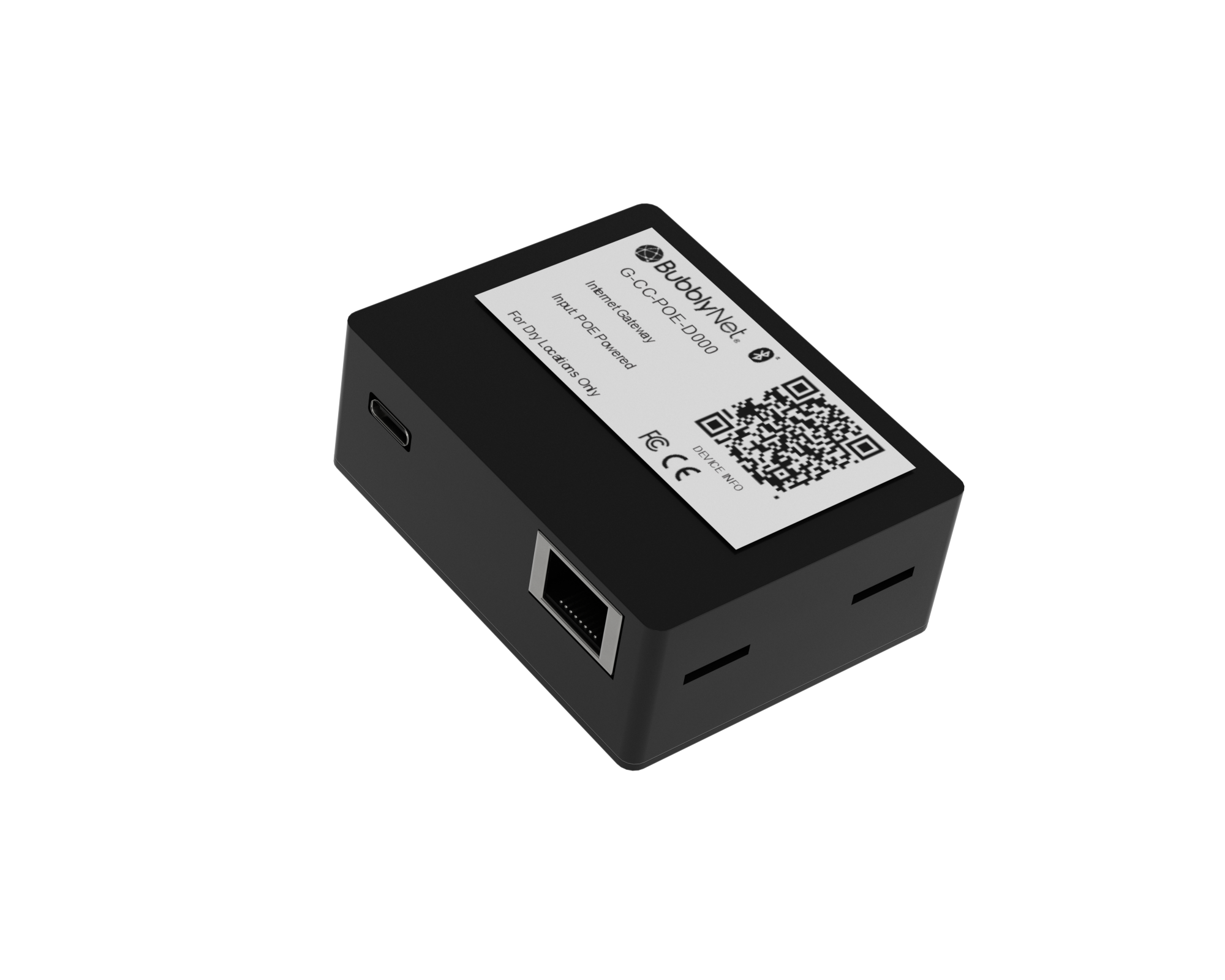

Internet Gateway
G-CC-C05-D000
The Gateway connects the network to the “outside”. It allows for remote access to the network as well as cloud connection to BMS, voice control services and more. There are different versions of hardware and software depending of the intended use.
Oops, that's an error. Try refreshing
For more information please open this page in the HubSpot page editor.Login or contact sales to view pricing.
Technical Description
Gateway between various protocols and the ecosystem:
- Sensor data collection and analysis
- Remote debugging and configuration of Mesh Networks
- Internet Gateway for the Mesh Network
For best results, Gateways need to be installed within 30 feet of the closest device within the Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
- Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth® 5.0, Bluetooth® Low Energy, Gigabit Ethernet
- Memory: 2GB LPDDR4
- Input Power: 5V, 2A operating input range, Short circuit, overcurrent and over temperature protection; 1.5m 18 AWG captive cable with USB-C output connector
- Short Circuit: overcurrent and over temperature protection
- Operating Ambient Temperature: 32°F to 122°F (0°C to 50°C)
- Dimensions: 1.7" x 2.75" x 1.05" (43mm x 70mm x 26mm)
- Color: Black
