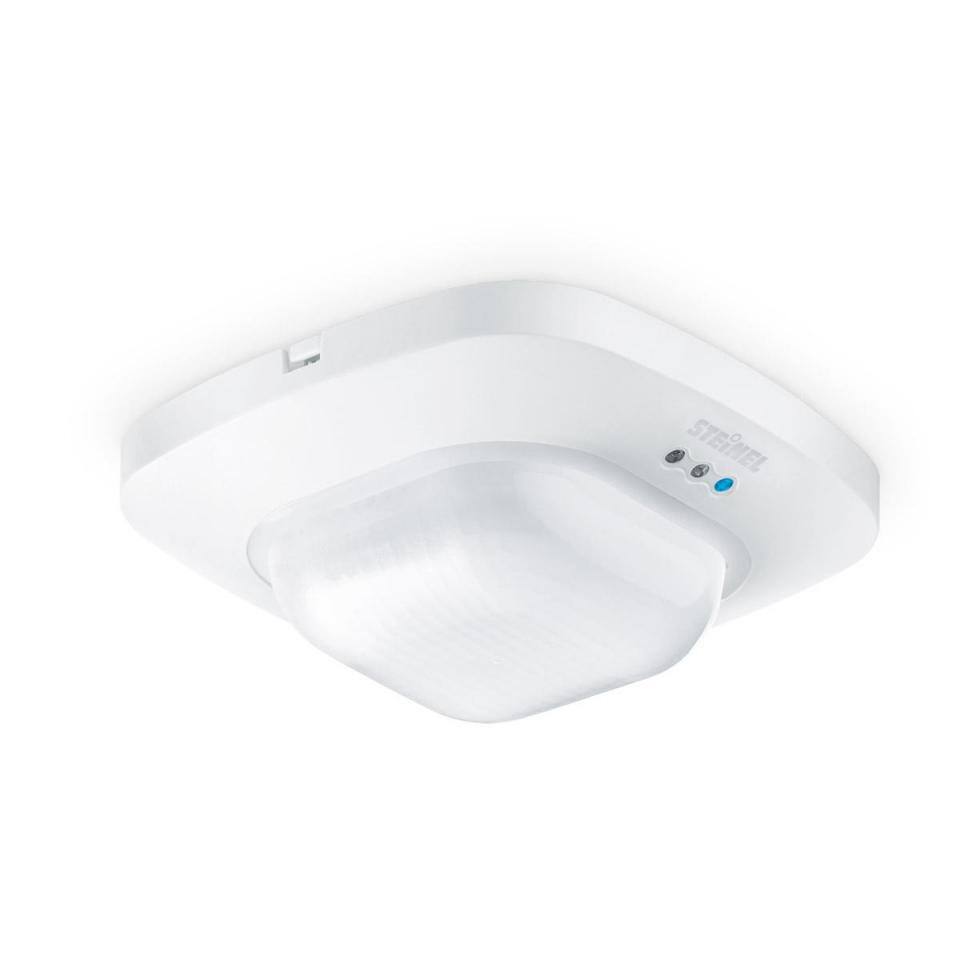

High Definition IR Motion Sensor
S-HT-C12-DRWH
The S-HT-C12-DRWH is a low voltage, high definition, passive infrared presence detector setting a new standard in lighting control with minimal movement required for human presence detection. Features four pyroelectric detectors with a high performance lens system that creates a new global standard in detection with 4,800 switching zones.
Oops, that's an error. Try refreshing
For more information please open this page in the HubSpot page editor.Login or contact sales to view pricing.
Technical Description
- Voltage: 24 VDC/VAC (32 mA)
- Sensing technologies: Passive Infared (PIR)
- Light Level Setting: 10 - 1000 lux / 1 - 100 fc
- Environment: IP20 rated, 0°C to +40°C, 32°F to +104°F
- Installation Height: 2.5- 10 m / 8 - 32 ft
- Coverage at 9 ft:
- 360° square mechanically scalable detection zones
- presence:
- max. 7.9 x 7.9 m (62.41 sq.m.)
- max. 25.5 x 25.5 ft (650.25 sq. ft.)
- radially:
- max. 7.9 x 7.9 m (62.41 sq. m.)
- max. 25.5 x 25.5 ft (650.25 sq. ft.)
- tangentially:
- max. 20 x 20 m (400.0 sq. m.)
- max. 65.5 x 65.5 ft (4,290.25 sq. ft.)
- Sensors: 4 Infrared Pyroelectric Detectors
- Lens Design: 13 Detection Levels, 4800 Switching Zones
- Dimensions: 4.72 x 4.72 x 2.83 in, 120 x 120 x 72 mm (LxWxD)
- Warranty: 5 Years
