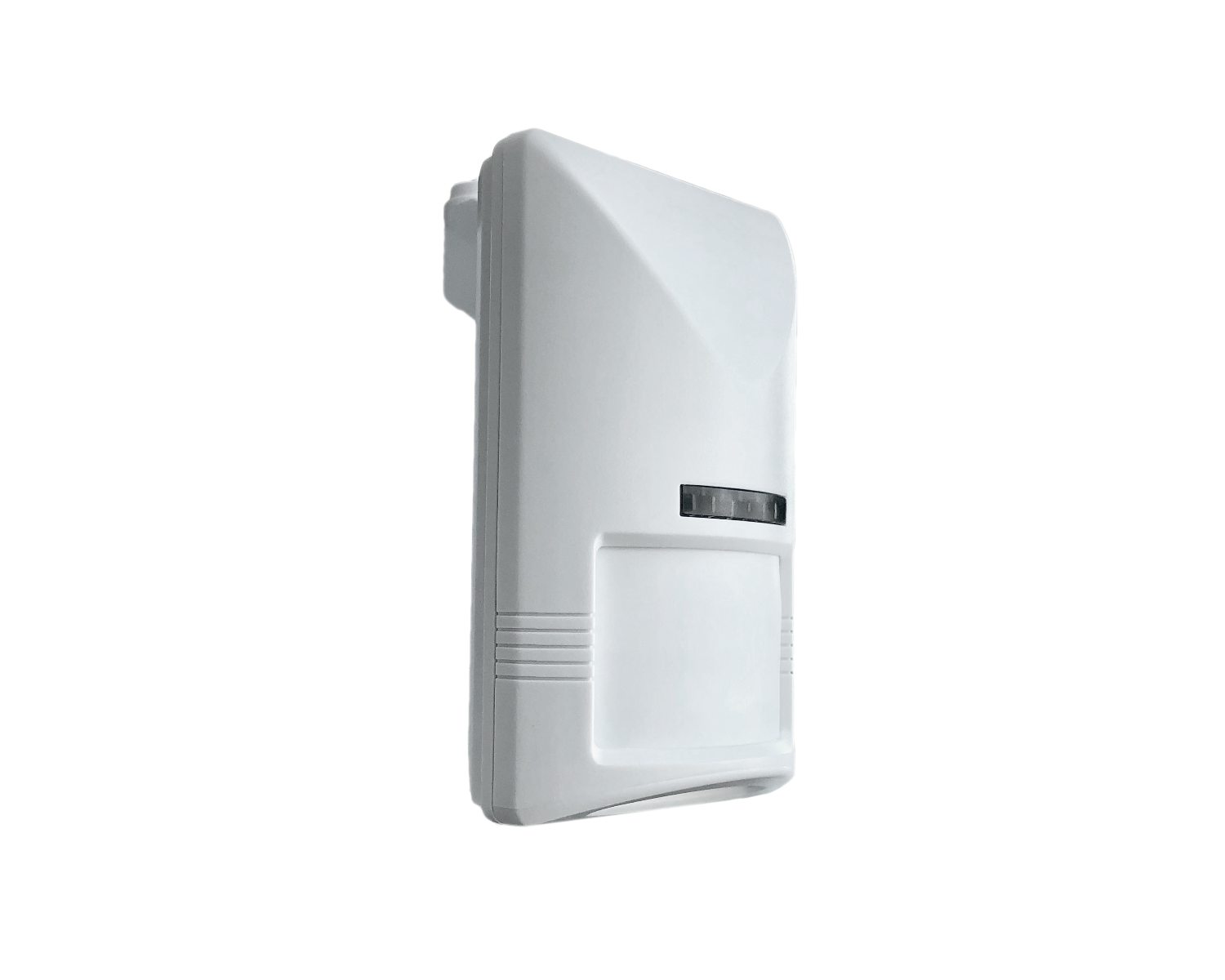

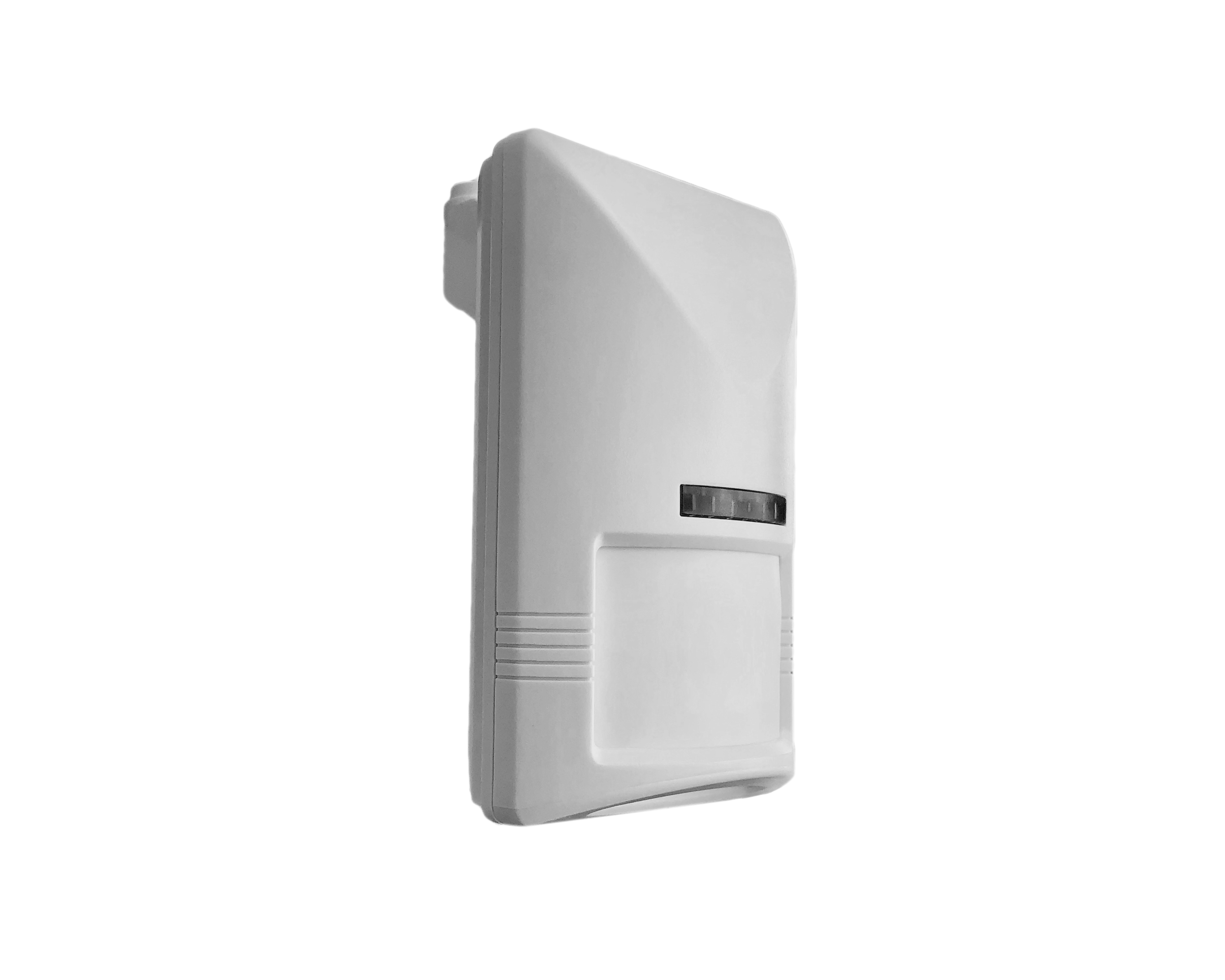

Dual-Tech Wall Occupancy Sensor
S-OD-W24-DT0W
This is a wall mounted Occupancy Sensor with Passive Infrared and High Frequency Doppler occupancy sensing capabilities and a Max Detection Area of 50ft.
The sensor will automatically turn luminaires on to the set dimming level when motion is detected and turn lights off after the area is vacated.
Oops, that's an error. Try refreshing
For more information please open this page in the HubSpot page editor.Login or contact sales to view pricing.
Technical Description
The Dual-Tech Occupancy Wall Sensor uses PIR Motion Detector Architecture and High-Frequency Doppler technology for improved detection coverage for wall or ceiling mount applications. The sensor is suitable for a variety of indoor applications. The sensor is a Class 2 Device designed to satisfy new CA Title 24 requirements for bi-level dimming of lighting fixtures.
- Sensor Type: PIR and High Frequency Doppler Occupancy
- Power Supply: 22 - 26 VDC/DC
- Mounting Height: 6' -10' (1.8 - 3m)
- Max Detection Area*(See spec sheet for details): 110°, 50ft
- Operating Humidity: Max 95% RH
- Operating Temperature: -14°F to 122°F (-10°C to 50°C)
- Mounting: Wall or Ceiling
- Dimensions: 4.4” x 2.6” x 1.8” diameter (112 x 66 x46 mm)
- Color: White
- Warranty: 2 Years
The Dual-Tech Occupancy Wall Sensor offers numerous control options which can be enabled, or disabled via an on-board 6-pole DIP switch, including three LED’s to indicate the sensing status which can be disabled, if necessary. End users can program length of time delays, light level sensitivity, sensor range and other settings using the BubblyNet App. A built-in buzzer can be enabled to provide audible Delay-End Warning and Test Mode. SmartDelay can be enabled to automatically adjust the OFF-delay from 3 to 30 minutes according to the duration of previous occupancies. The OFF-delay time will be constantly calibrated based on the history data collected.
The Dual-Tech Wall Sensor may detect traffic behind certain types of partitions and result in unwanted OFF-delay extension. The FORCE-OFF function can be enabled to disengage the relay at 5 times of FORCE-OFF delay set, if the sensor detects the movements during OFF-delay duration. Lower PIR sensitivity can be achieved by setting the DIP switch to ON position to eliminate unwanted activation.
The Dual-Tech Occupancy Wall Sensor needs to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. It supports wall and ceiling mounts from 6 to 10 feet high. To achieve optimal coverage, sensor angle can be adjusted horizontally or vertically. 24 VDC power needs to be supplied to the sensor along with one 12V DC/DC converter and a BubblyNet DC 0-10V controller, both included with sensor. Sensors, converter and controller are rated for use in temperatures ranging from -14°F to 122°F (-10° to 50°C) and relative humidity up to 95% indoors.
For best results, sensors need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
