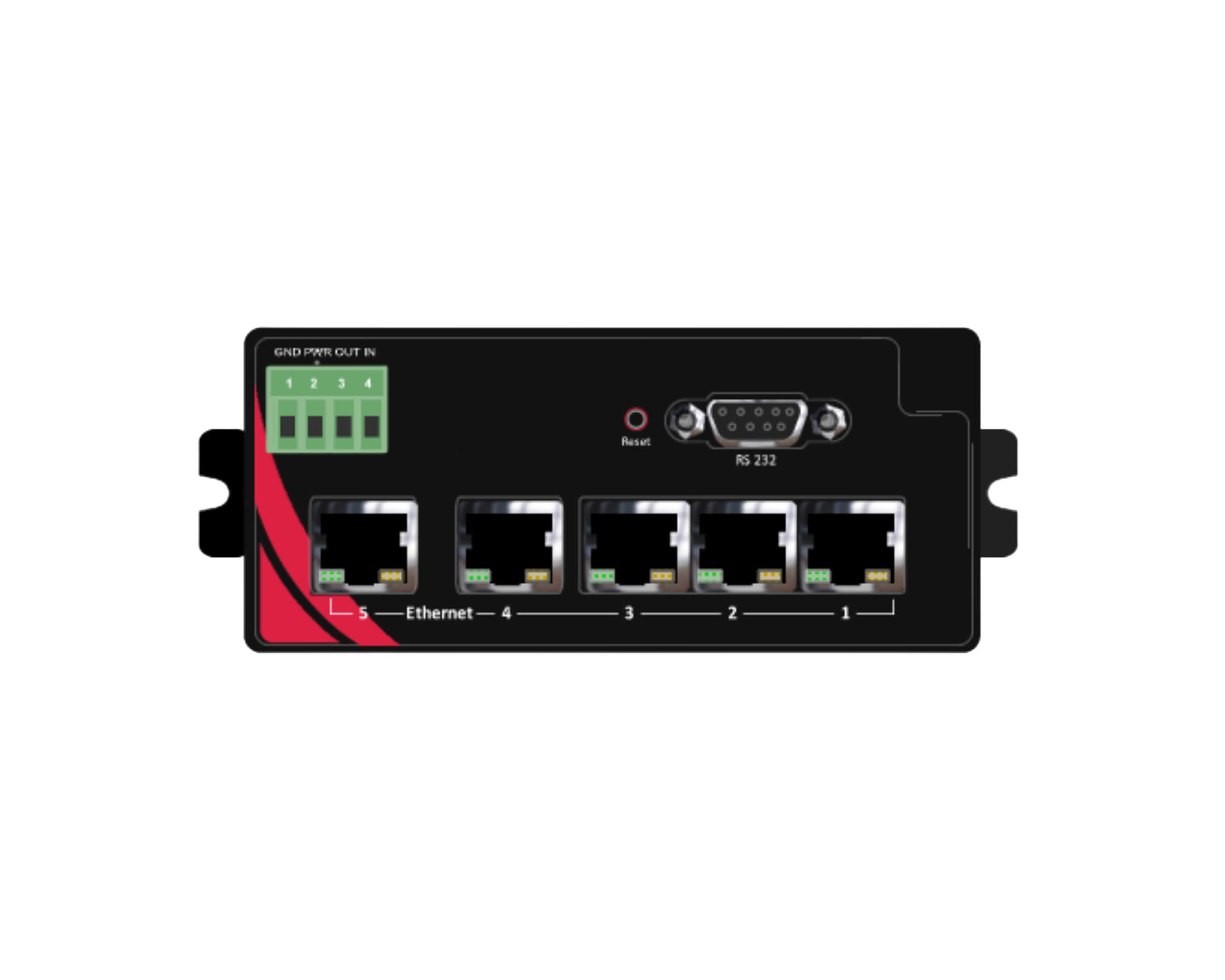

Demand Response Virtual End Node (VEN)

A-VEN-0T-DCD0

The A-VEN provides the next generation of Certified OpenADR VEN for 2.0a or b. With multiple relay outputs that can be individually mapped for Pending, Moderate, High, or Special Events. Up to 4 relay modules can be connected at distances of 100 meters.

Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Login or contact sales to view pricing.

Technical Description

  • LAN-to-LAN or LAN-to-WAN connectivity
  • Built in security and routing protects against unwanted intrusion
  • IPsec and SSL VPN tunnels
  • Stateful firewall
  • Port forwarding
  • Packet filtering
  • Access control list (ACL)
Ethernet Interface (10/100 Auto-Sensing)
  • Five (5) RJ-45 type connectors
Mechanical
  • Dimensions: 4.7” x 3.77” x 2.0” (120 x 96 x 51 mm)
  • Weight: 1.2 lbs. (544 g)
Power Input
  • 12VDC-24VDC
Output Signal
  • 0-10V
Environmental
  • Operating temperature: -40° to +70°C
  • Humidity: 5 to 95% non-condensing
  • Shock: IEC60068-2-27
  • Vibration: IEC60068-2-6
