Technical Description

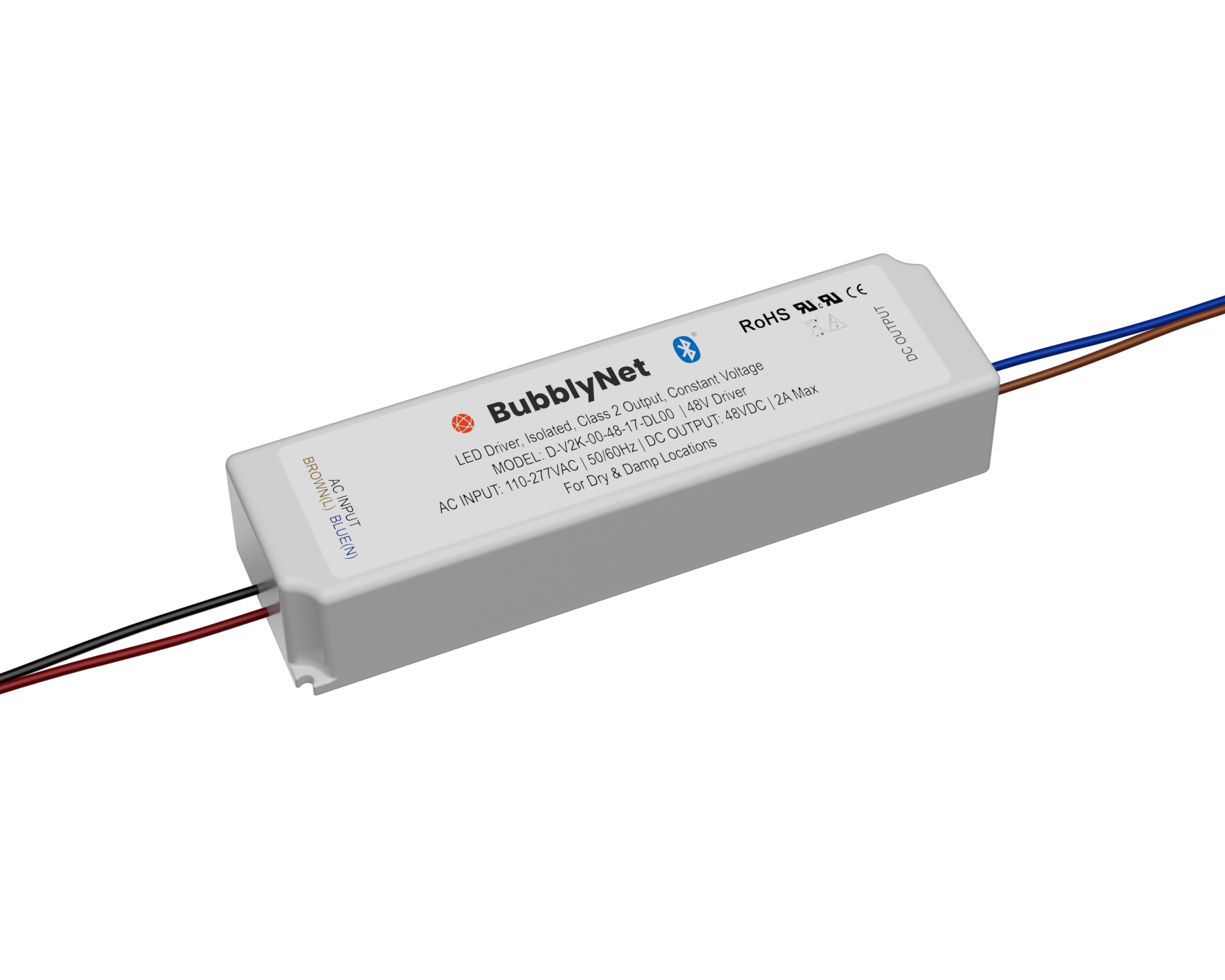

The D-V2K-00-48-17-DL00 Single Channel drivers are the ideal solution for standalone projects as well as the backbone of complex mesh networks.

• Input Voltage: 110-277VAC | 50/60Hz
• Output Current: 2,000mA Max
• Output DC Voltage: 48VDC
• Operating Temperature: -10° to 50°F (-23° to 10°C)
• Protections: Over Current, Short Circuit, Over Voltage, Over Temperature
• Programmable Dimming Curves: Soft ON/OFF. Linear and Logarithmic Dimming
• Wireless 2.4 GHz: Constant Voltage
• Dimensions: 7.5" x 2" x 1.625 (190.5 x 51 x 38 mm)
• Housing Dimensions: 14.75” x 3.125 x 1.75” (374.65 x 80 x 44.5 mm)

The D-V2K-00-48-17-DL00 operates on 110-277V. Once powered up, the device broadcasts its identification code waiting to be commissioned through the BubblyNet App. The installation of the D-V2K-00-48-17-DL00 is very simple. Install the driver as a standard non-dim 48VDC driver. As soon as the driver is powered on it will start broadcasting the non-provisioned advertising messages that will tell the provisioning app that a new device is ready to join. The provisioning app will connect to the new driver, configure security keys, addresses and other data so the new driver can join the Mesh Network. After the new driver joins the Mesh Network it is ready to be configured (publishing / subscribing data.)

For best results, drivers need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
