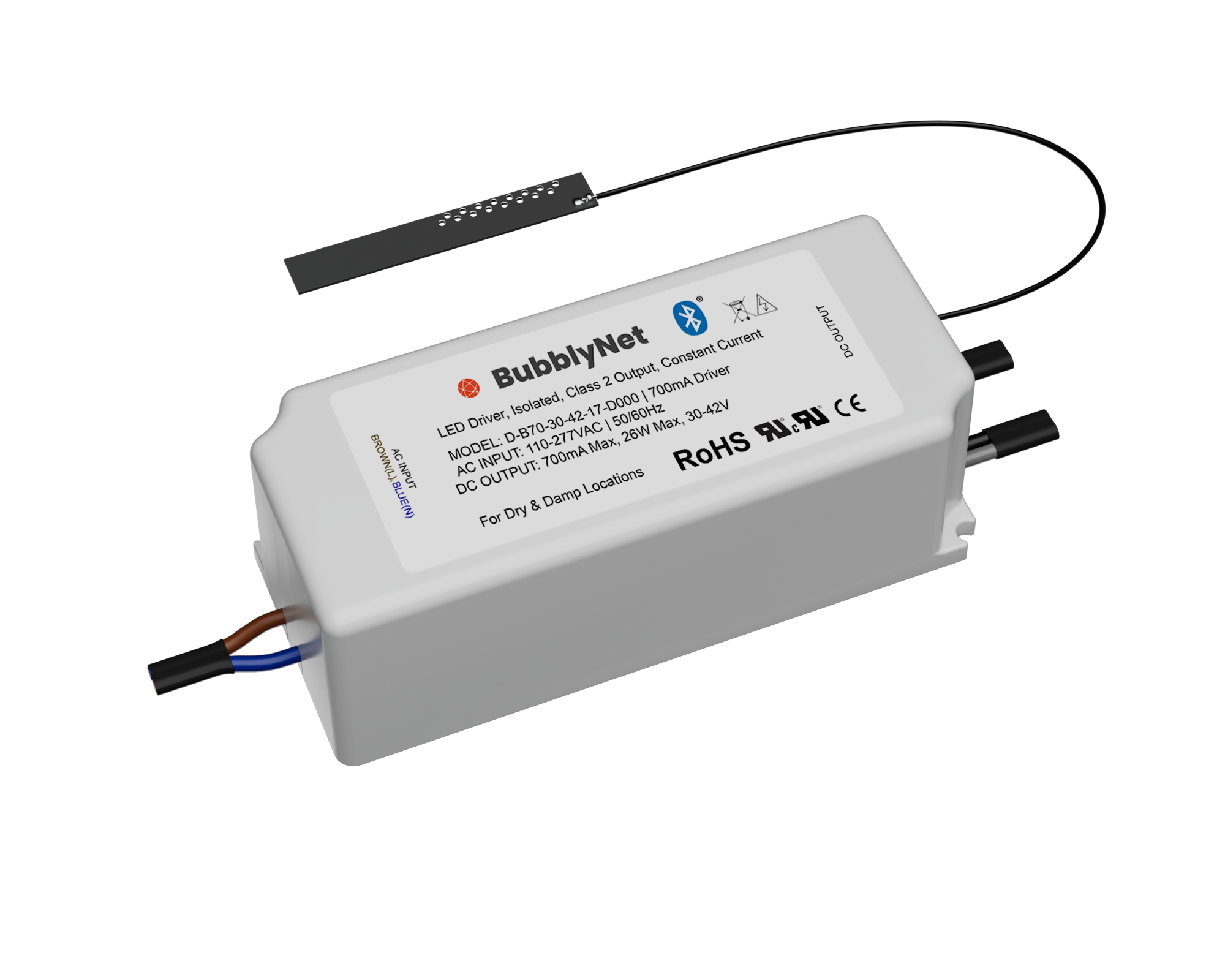

2CH DRIVER CC 26W AC/DC 700mA MAX

D-B70-30-42-17-D000

This wireless dual-channel driver is programmable from 100mA up to 700mA and can control TW luminaires or 2 separate channels without the use of a gateway.

Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Login or contact sales to view pricing.

Technical Description

The Tunable White driver is a wireless device that controls via Bluetooth® a Tunable White fixture and does not require the use of a gateway.

  • AC Input Voltage: 110-277VAC
  • DC Output Voltage: 30-44VDC Per Channel
  • Max AC Input Current: 0.4A
  • Max DC Output Current: 0.7A (2 Channel Combined)
  • Operating Temperature: 14° to 104°F (-10° to 40°C)
  • Protections: Over Current, Short Circuit, Over Temperature
  • IP Rating: IP 20 - Dry Locations
  • Dimensions: 4.25” x 1.7” x 1.25” (108 x 43 x 25.4 mm)
  • Housing Dimensions: 12” x 2.5” x 1.625” (305 x 63.5 x 41.3 mm)

The D-B70-30-42-17-D000 operates on 110-277V. The two channels are used to mix different light sources for Tunable White applications. Once powered up, the device broadcasts its identification code waiting to be commissioned through the BubblyNet App. The installation of the D-B70-30-42-17-D000 is very simple. The two wires for universal AC input are connected to the main line.

The two wires for DC output are connected to each of the tunable white colors. As soon as the driver is powered on it will start broadcasting the non-provisioned advertising messages that will tell the provisioning app that a new device is ready to join. The provisioning app will connect to the new driver, configure security keys, addresses and other data so the new driver can join the Mesh Network. After the new driver joins the Mesh Network it is ready to be configured (publishing / subscribing data.)

For best results, drivers need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
