Technical Description

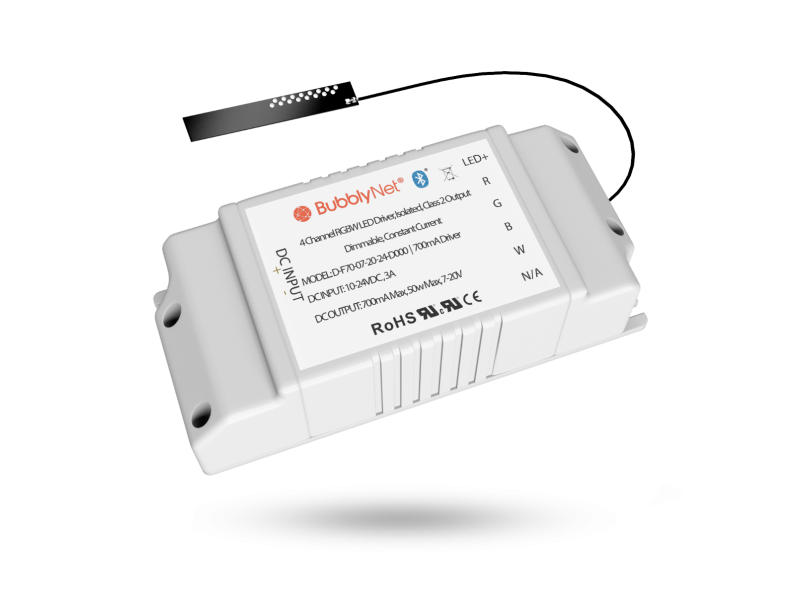

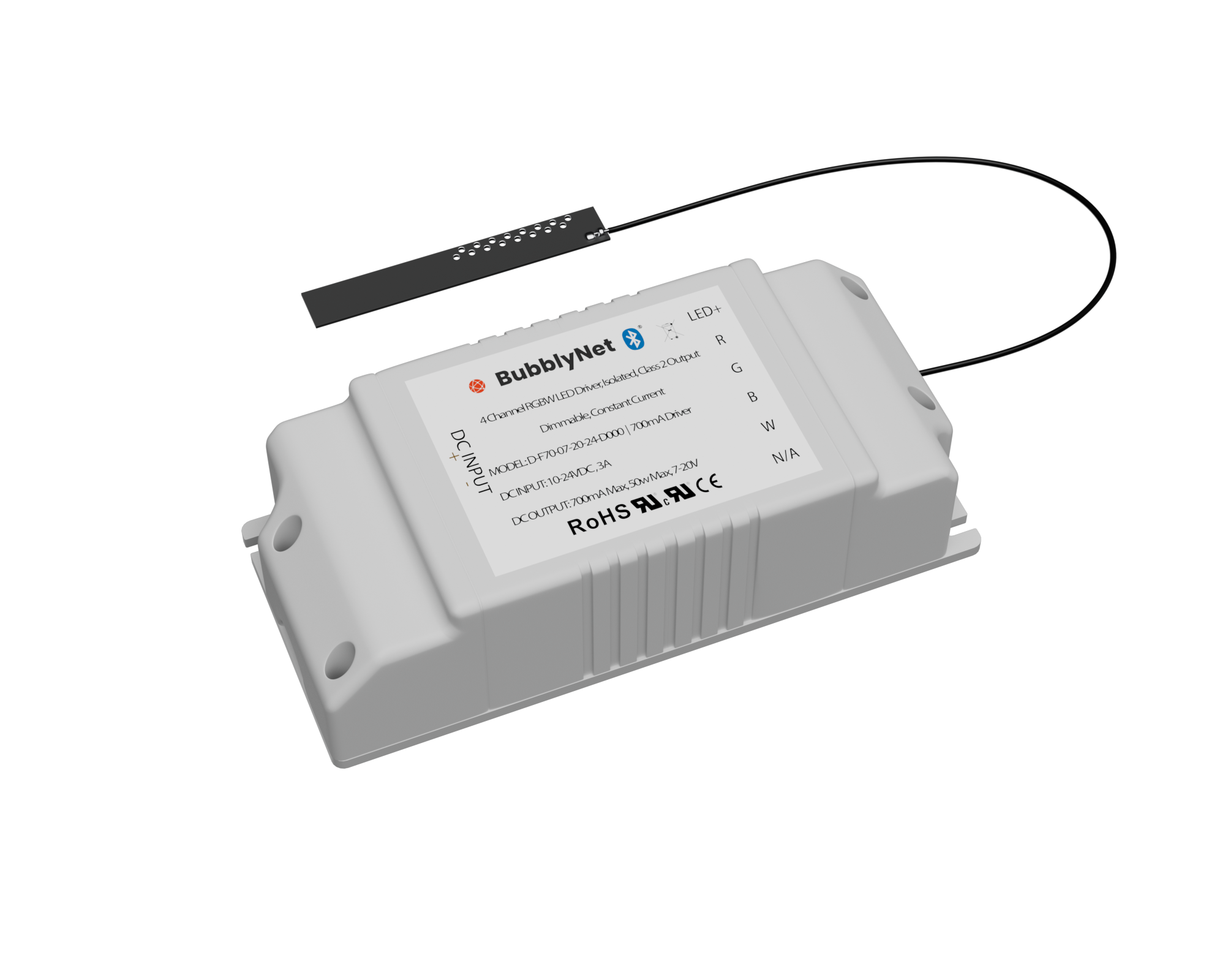

The 40W 4 CH CC RGBW LED Driver is a wireless device that controls via Bluetooth® an RGBW fixture and does not require the use of a gateway.

• DC Input Voltage: 24VDC
• DC Output Voltage: 2-24VDC
• Max AC Input Current: 3A
• Max DC Output Current: 700mA (per channel)
• Operating Temperature: 19° to 104°F (-10° to 40°C)
• Programmable Dimming Curves: Soft ON/OFF
• Wireless 2.4GHz: Constant Current LED Driver
• Class: 2
• Protections: Over Current, Short Circuit, Over Temperature
• IP Rating: IP 20 - Dry Locations
• Dimensions: 4” x 1.75” x 1.125” (102 x 44.5 x 28.6 mm)
• Accepts Universal 24VDC: Power Supplies

The D-F70-07-20-24-D000 operates on 24VDC. The four channels are used to mix different light sources for a variety of applications. Once powered up, the device broadcasts its identification code waiting to be commissioned through the Bubblynet App.

The installation of the D-F70-07-20-24-D000 is very simple. The two wires for DC input are connected to the power supply. The connectors from the RGBW fixture are connected to the six position on connector according to the label in the product. As soon as the driver is powered on it will start broadcasting the non-provisioned advertising messages that will tell the provisioning app that a new device is ready to join.

The provisioning app will connect to the new driver, configure security keys, addresses and other data so the new driver can join the Mesh Network. After the new driver joins the Mesh Network it is ready to be configured (publishing / subscribing data.) For best results, drivers need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network.

24VDC power needs to be supplied to the driver, not included.
