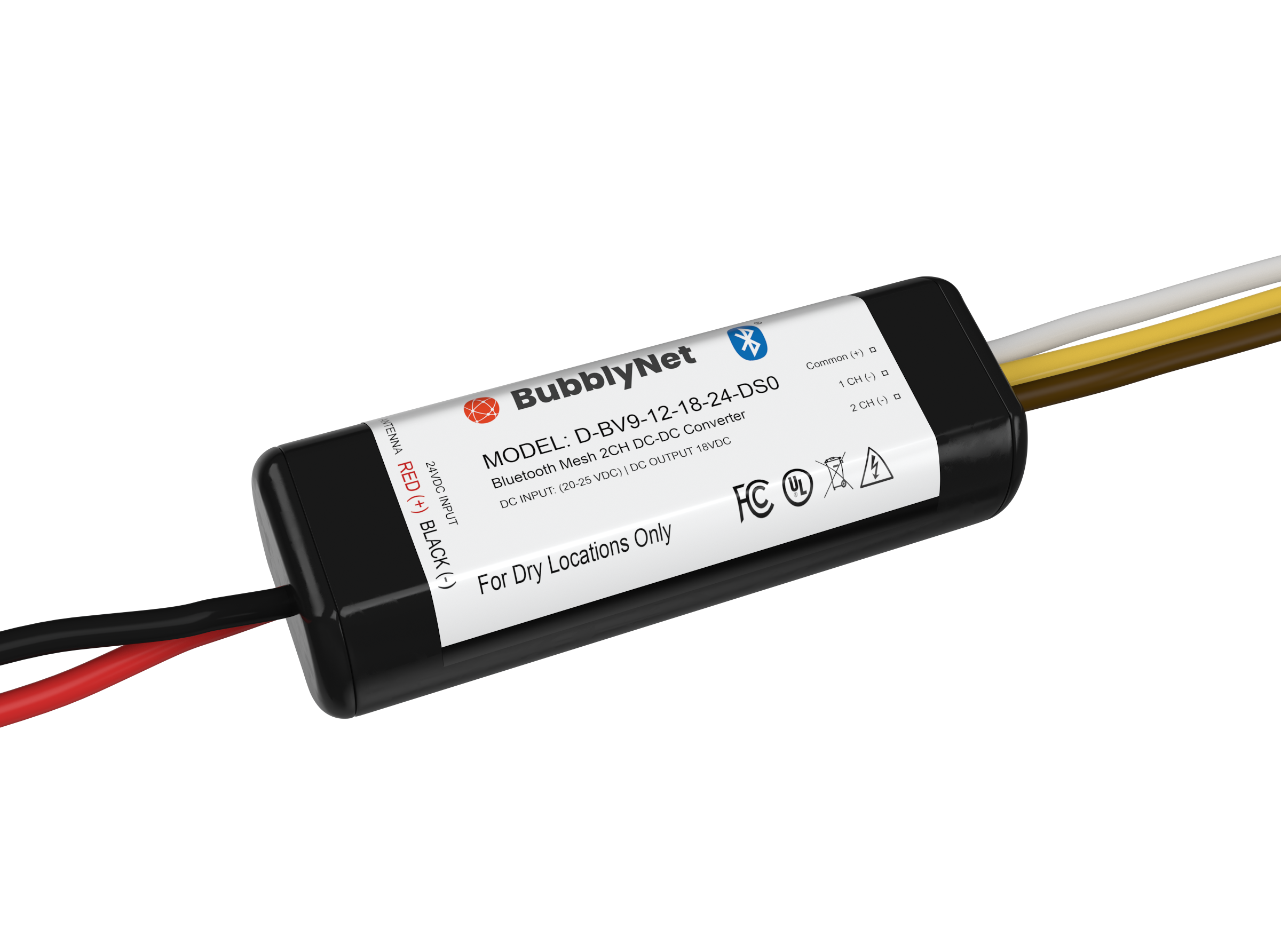

32w Max | Bluetooth Mesh 2CH DC-DC Converter

D-BV9-12-18-24-DS0

The D-BV9-12-18-24-DS0 is the ideal solution for a class 2 constant voltage dimming solution. With just one 96 Watts not dimmable PSU is possible to connect up to 42  D-BV9-12-18-24-DS0 and individually address the 42 static or tunable white light fixtures.

DLC-QPL-LISTED-logo_color



Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Scroll right to see more

Select options from each column to view pricing for your configuration.

Login or contact sales to view pricing.

Technical Description

These drivers are the ideal solution for standalone projects as well as the backbone of complex Mesh Networks. The driver is programmable from 100mA up to 1,000mA.

  • Input Voltage - 20-25 VDC
  • Efficiency @full load - 75%
  • Output Current - 0.02mA-700mA
  • Overshoot current - <0.1
  • DC Output Voltage - 18VDC
  • Rated Power - 13W
  • Rated current range: 100-700mAh
  • Operating Temperature - 13° to 140°F (-25° to 60°C)
  • Dimensions - 2.56” x 1" dia (65mm x 25mm dia)
  • Net weight- 14.2g



Operation The D-BV9-12-18-24-DS0 needs to receive a constant voltage 24VDC input and can be connected to any 18V constant current light fixtures, static or tunable white. This converter can be controlled by the Bubblynet app or once in a network can work with scenes, sensors, switches or touchscreens panels. Installation This product is a class 2 low voltage converter. It doesn't required to be enclosed in a metal box or junction box.
