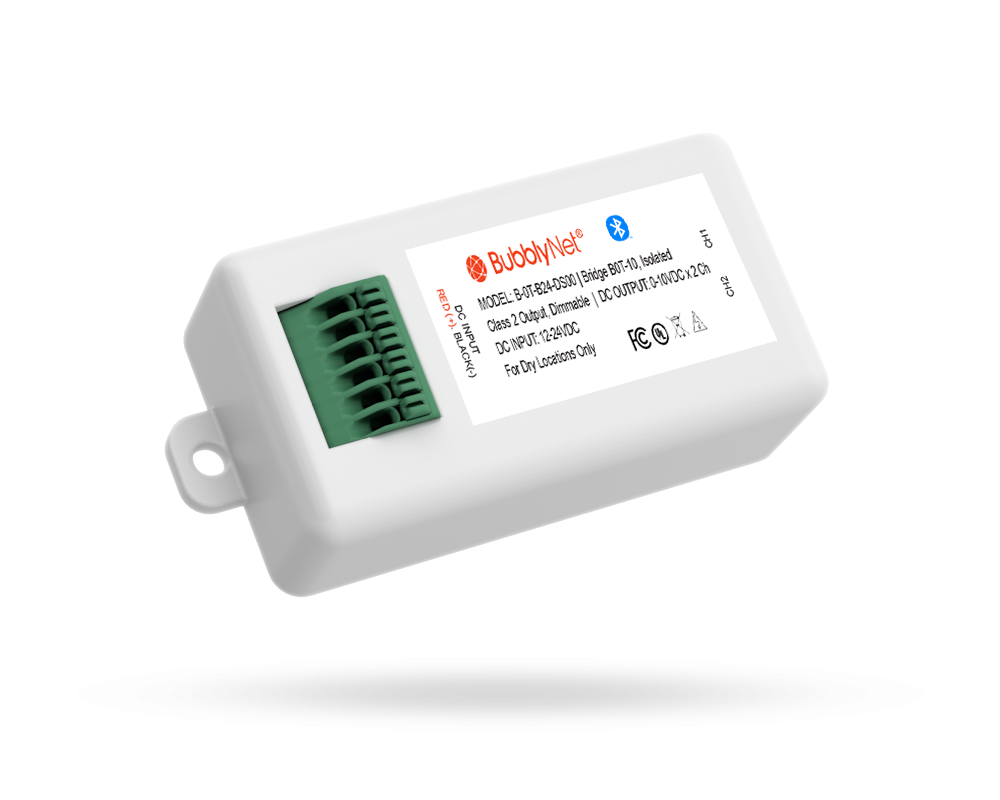

2CH 0-10V Tunable White Controller

C-T2C-24-DS00

The 2 Channel controller converts two 0-10V drivers into a Bluetooth® Mesh Node using the 2 channels to mix different light sources for Tunable White or direct/indirect applications.



It can be installed inside fixtures, j-boxes, inside its own UL listed enclosure or remote. It controls two 0-10V drivers connected together.

Oops, that's an error. Try refreshing

For more information please open this page in the HubSpot page editor.

Product Option Table

This product has no options.

Login to HubSpot to get started.

Login or contact sales to view pricing.

Technical Description

The 0-10V Controller is a wireless module that controls via Bluetooth® 0-10V drivers. It transforms any 0-10V device into a smart wireless device and does not require the use of a gateway.

  • DC Input Voltage: 12-24VDC
  • DC Output Voltage: 0-10VDC x 2 Channels
  • Operating Temperature: 4° to 140°F (-10°C to 60°C)
  • Dimensions: 3.25” x 1.5” x 0.875” (82.5 x 38 x 22 mm)

The C-T2C-24-DS00 operates on 12-24VDC. Each of the two channels control independently a 0-10V driver. The two channels are used to mix different light sources for Tunable White applications. Once powered up, the device broadcasts its identification code waiting to be commissioned through the Bubblynet App. The C-T2C-24-DS00 is a Bluetooth® Mesh Qualified device. This means that it can be controlled and be part of any Bluetooth® Mesh Network, independently of the brand or manufacturer of the additional devices or controls.

The installation of the C-T2C-24-DS00 is very simple. The two wires for DC input are connected to a DC power supply and 2 + 2 wires for 0-10V output are connected to the 0-10V drivers. As soon as the Controller is powered on it will start broadcasting the non-provisioned advertising messages that will tell the provisioning app that a new device is ready to join.

The provisioning app will connect to the new driver, configure security keys, addresses and other data so the new bridge can join the Mesh Network. After the new Controller joins the Mesh Network it is ready to be configured (publishing / subscribing data.)

For best results, controllers need to be installed within 30 feet of the closest device within the Bluetooth® Mesh network. Signal strength significantly decreases in presence of metal barriers such as when devices are enclosed in metal boxes.
