Download our free mobile app and control your Bluetooth Mesh Network from everywhere. Transform the way the space in your smart building is controlled. The App can be accessed, depending on the credentials, at different levels of complexity, making it extremely intuitive for the end user (USER level) as well as powerful and sophisticated for the control professional (PRO USER).
The BubblyNet App works as a commissioning tool as well as a User Interface for any Qualified Bluetooth Mesh system (whether BubblyNet or not). The App works on iOS and Android devices, and it is free to download.
WE BELIEVE THAT THE BEST APPS
ARE BUILT WITH YOU IN MIND
At BubblyNet, we are constantly listening to the feedback of our users and release new updates to bring the App closer to your ideal user experience.
We’re excited to share that in the most recent updates, when you download the App, we include a demo network. Demo 1 is a testing network which allows a user to become familiar with the navigation and functions of the App. Also, the Scenes and Animations interfaces were split into a configuration mode for set-up and a more streamlined layout for every day use.
Please continue to send your feedback as it plays a vital role in enhancing what many customers consider to be the finest Bluetooth Mesh App available on the market.
APPLE STORE and GOOGLE PLAY
Now available on the App Store and Google Play
The App has three levels of control:
BASIC USER
This is the default interface and allows for the very basic lighting controls including ON/OFF, dimming, recalling scenes and a few more basic commands. Static color, Warm Dim, Tunable White and Full Spectrum RGBW luminaries can easily be controlled with this powerful App. Here are some examples of functions available at this level:
BubblyNet App Info Icon
BubblyNet’s learn-as-you-go tool provides a guide to navigate each screen of the BubblyNet App.
The Info Icon is located on the top right corner of each screen of the App and clicking it provides detailed instructions to navigate that screen.

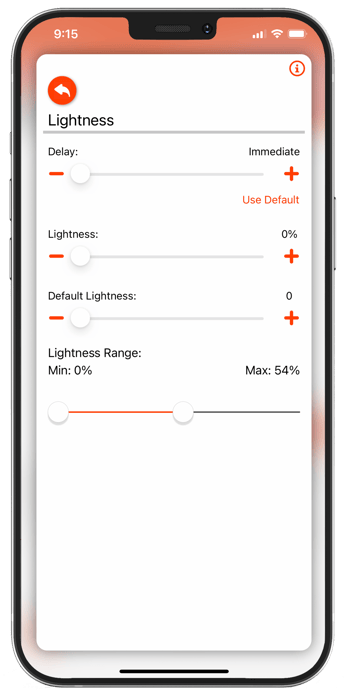

Dimming
Static color, Warm Dim, Tunable White and Full Spectrum RGBW luminaries can easily be controlled with this powerful app.
Tunable White
Tunable White control and technology allows for the ultimate in white light flexibility. Intensity and color temperature are selectable independently. Tunable White control paired with Light Sensors and Clock functions allows to emulate natural light variations throughout the day and have been demonstrated to positively influence the Circadian Rhythm of guests and employees.
Full Color Spectrum (RGBW)
The App is very easy to use and extremely powerful with several new features. These include intuitive ways to select colors with kelvin or hex values, and an all-new CCT slider.
ADVANCED USER
This level is password protected and allows for the most common functions while commissioning a system: Group settings, scanning for devices, commissioning of devices, assigning devices to groups, creating scenes, setting schedules, transitioning, delays, and more.
Making control simple for your users has never been so easy.
Grouping
Create your groups and subgroups with maximum flexibility. Assign fixtures to groups, create scenes for groups, control groups with switches, sensors and schedulers. Make your control simple for your users has never been so easy.
Sub Groups
Save time with the latest upgrade to BubblyNet's Lighting and Smart Building Control App. One is now able to create groups to move lighting, shades and other qualified smart building devices (whether BubblyNet devices or not) into a different group of their choice. This allows one to easily mass provision the devices within that group for lightning-fast set up and modifications.
Commissioning of devices
Press SCAN to see all the non-commissioned devices in the area. A selected device will respond with a series of blinks. Follow the menu with two more options then the device is fully commissioned within the network.
Scenes
Specific levels of dimming and color tuning can be set for single fixtures or for groups and saved for later use, activated by a switch, a sensor or a clock. Durations and transitions between Scenes can be set for sophisticated effects.

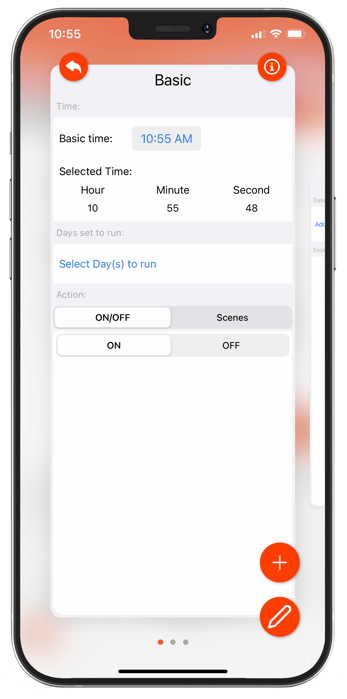

Scheduler
This function allows for exact dimming values and scenes to be recalled at a specific time and date.

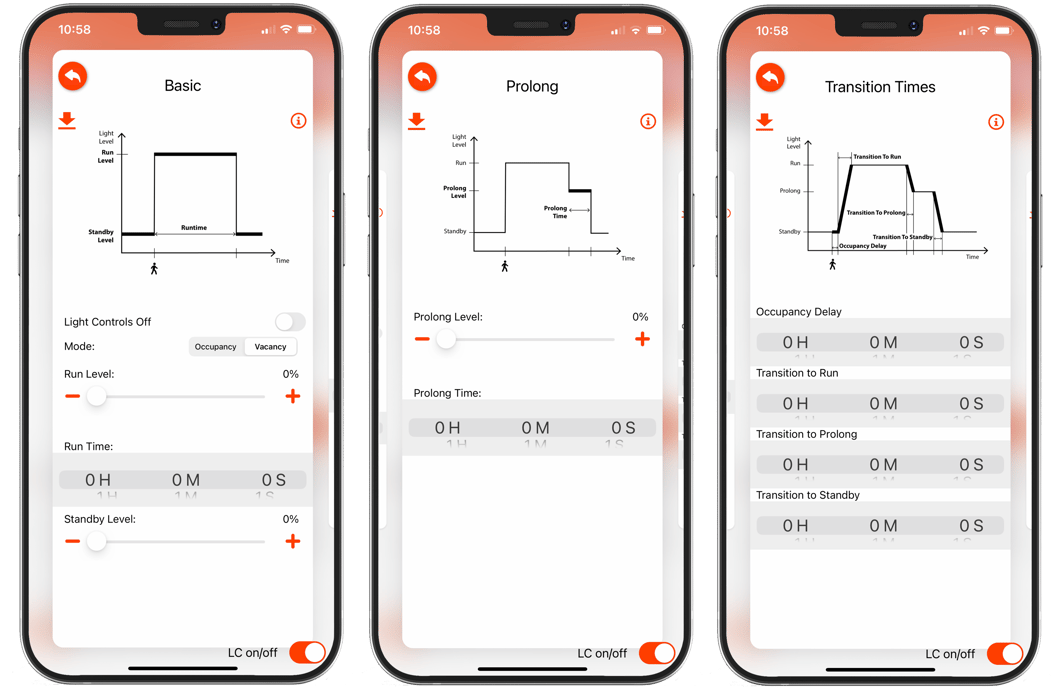

Motion Sensors Programming
Motion sensors as well as contact sensors can trigger events creating sophisticated sequence of operations.

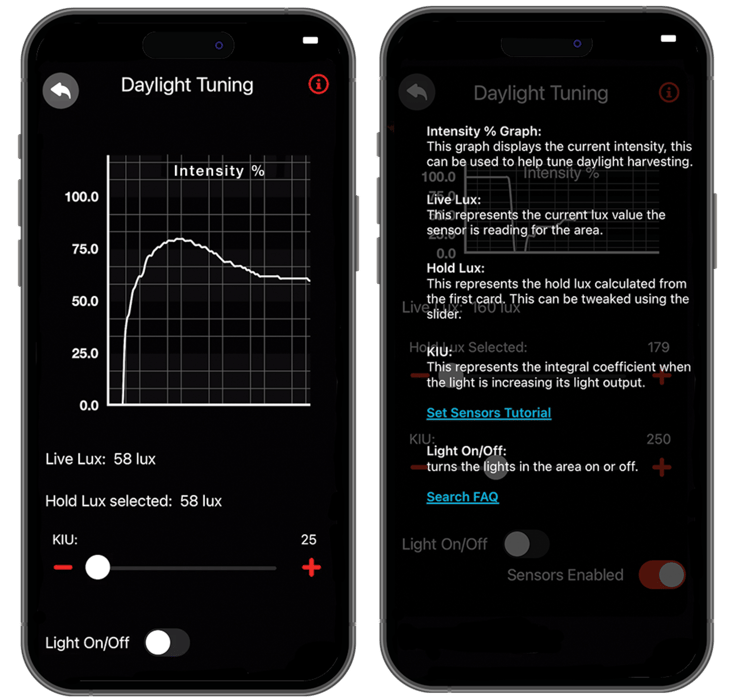

Daylight Sensors Programming
The App intuitive graphic interface makes it easy to program light sensors and control artificial light as well as shades.

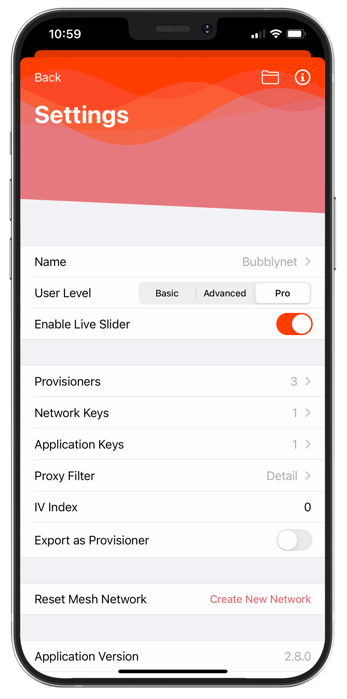

PRO USER
- Default TTL (Time To Live) editing for network traffic
- Device Power factor
- Device Key editing
- Device Cache Clear
- Device Restart
- Device's Network and Application Keys access
- Device's Elements, Models, Servers, and Clients
- Device blacklisting
- Devices Composition Data;- Provisioners: add, edit, or delete
- Friend Enable/Disable
- Group addressing
- Group as a subnet
- IV Index (Initialization Vector Index) for security
- Network Keys
- Network export and provisioning capabilities
- Network Reset
- Network Beacon Enable/Disable
- Network’s Application Keys
- Node complete deletion from the network
- Proxy Enable/Disable
- Proxy Filter, Whitelist and Blacklist
- Publication settings (destination, TTL, pub interval, retransmit count & interval)
- Scenes ID editing
- Sensor Sensitivity
- Subscription change
This level is password protected and allows for a full control of the system including critical settings and security parameters such as:
